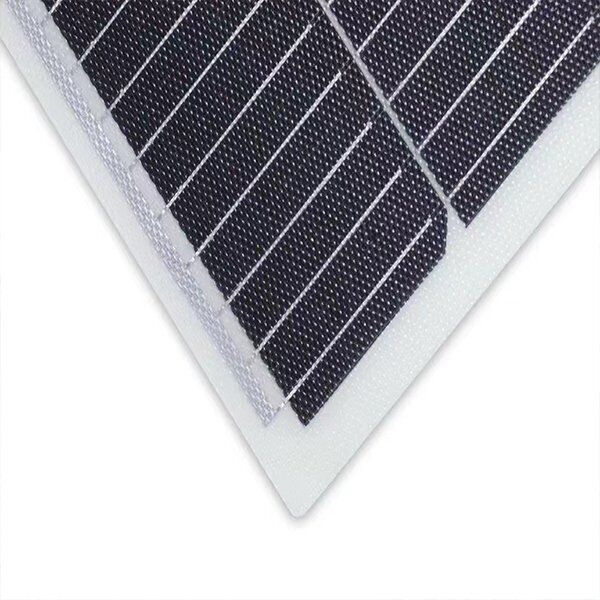

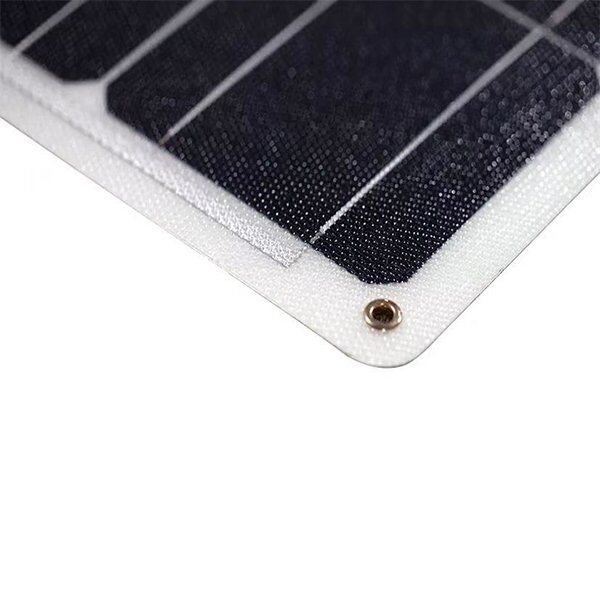

eArc is the world’s first glass-less solar module. An innovation combining proven crystalline silicon solar cells with patented composite material (ZL201610927464.6,ZL201610927383.6,EP3534410), eArc has the same durability and robustness of conventional glass modules.
Color | White |
---|---|
Material | Single crystal silicon |
Size | 2120×1046×2mm |
Thickness | Less than 2mm |
Weight | 7.2kg |
eArc is the world’s first glass-less solar module. An innovation combining proven crystalline silicon solar cells with patented composite material (ZL201610927464.6,ZL201610927383.6,EP3534410), eArc has the same durability and robustness of conventional glass modules.
Good flexibility
The minimum radius of the arc that a solar flexible panel can reach is 40cm(15.75 in).It is allowed to be installed on trailers, boats, cabins, tents, cars, trucks, trailers, yachts, trailers, roofs, or any other irregular surface.
Light weight & easy to install
It is only 0.1 inches tall and weighs only 3.97lb, which is very suitable for the assembly of invisible solar energy. And the solar panel is easy to transport, install, hang, and remove.
High conversion efficiency
High efficient monocrystalline solar cell, adopt unique back contact technology and remove electrodes on the solar cell surface that block the sunshine to increase the solar panel conversion efficiency up to 50% more efficiency than ordinary.
High-quality material
The solar panel is made of ETFE. ETFE material has higher light transmittance and longer service life than ordinary materials. ETFE materials ensure the best performance day after day. The backplane adopts TPT, which is good for heat dissipation, waterproof, high temperature resistance and easy to clean.
Wide range of application
It is very suitable for 12-volt battery charging. Multiple panels can be connected in series to charge 24/48 volt batteries. It needs to be used with the controller to protect the battery, and the solar panel can be easily connected to the solar controller/regulator.
1. Light weight and heavy load
2. Simple structure and quick installation
3. Beautiful appearance and good heat dissipation
4. Easy to check and clean the cable, easy to maintain and update.
1.Oil Industry;Chemical Industry
2.Electric Power;Pharmaceuticals Industry
3.Light Industry;Solar system
4.Telecommunications ;Shipyard Industry
